Introduction

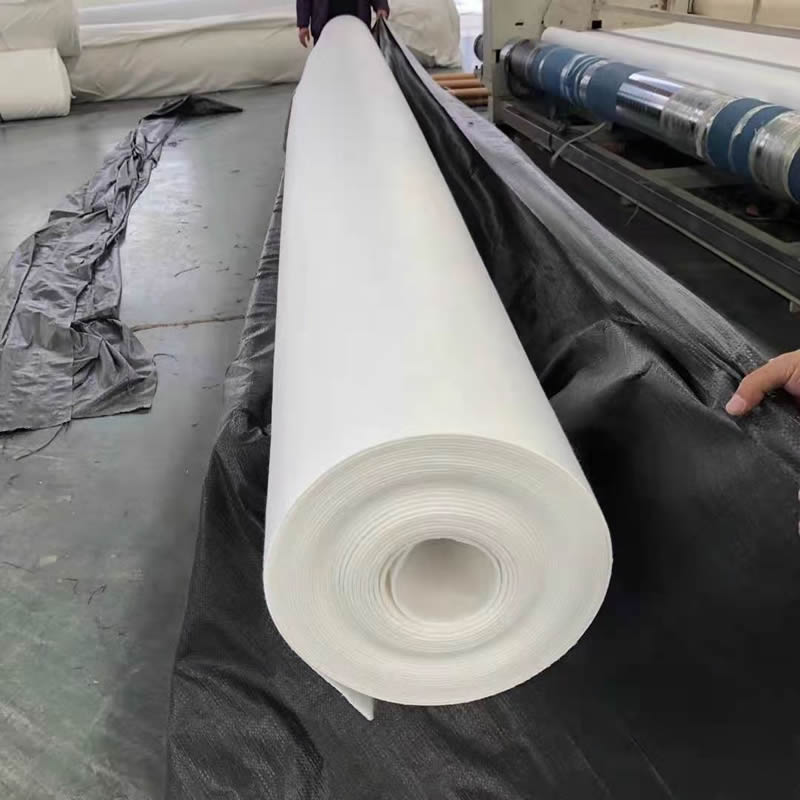

The composite geomembrane is consisted by layers of geomembrane and geotextile fabrics. By adding them together, it becomes more sustainable and durable. It has good flexibility, in addition to the geotextile isolation, drainage, reinforcement, protection and other functions, but also has closed (anti-seepage) function.
Application

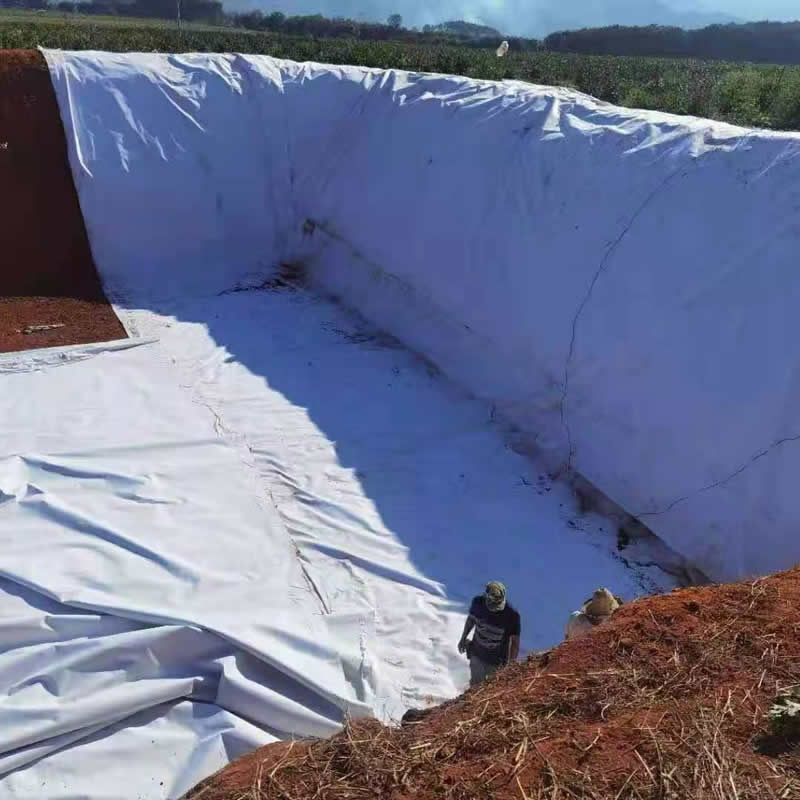

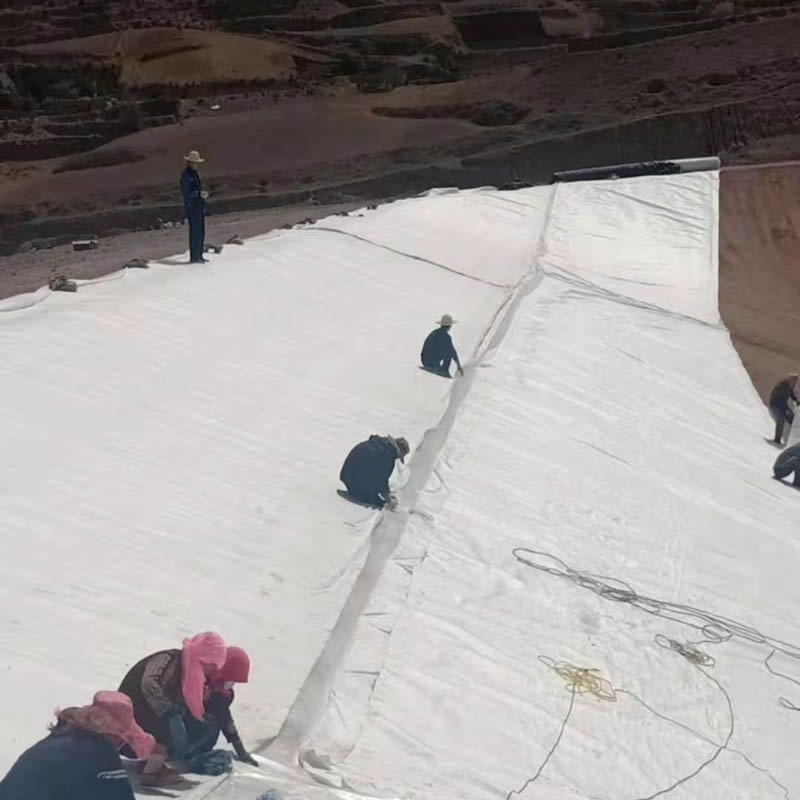

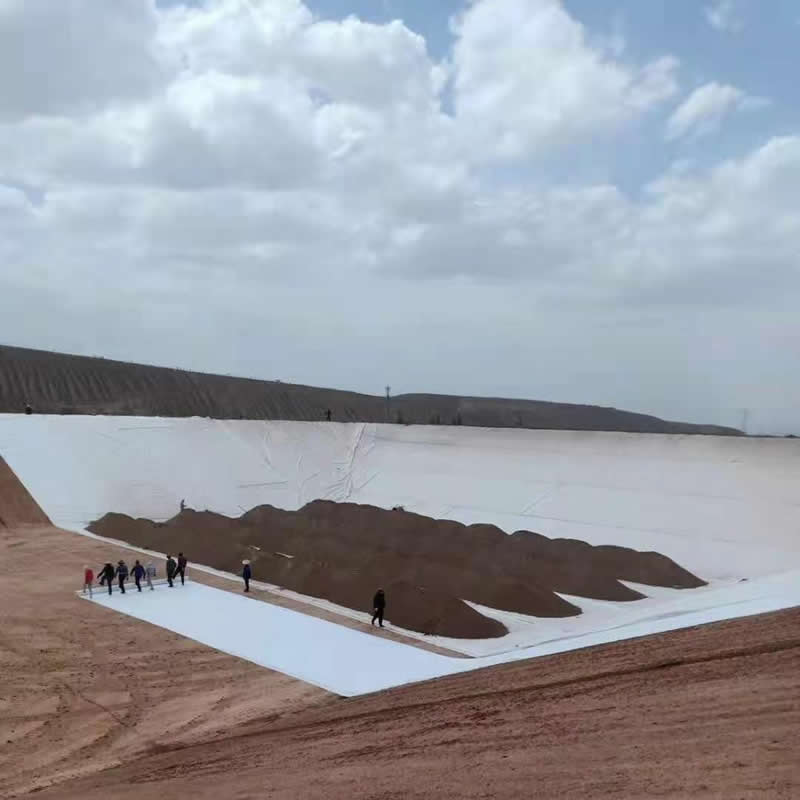

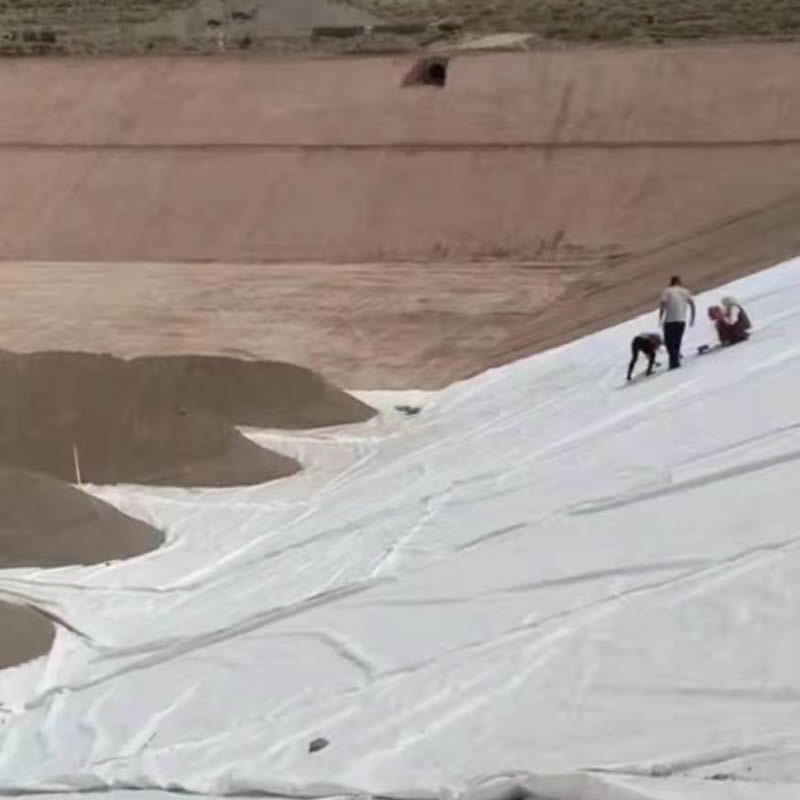

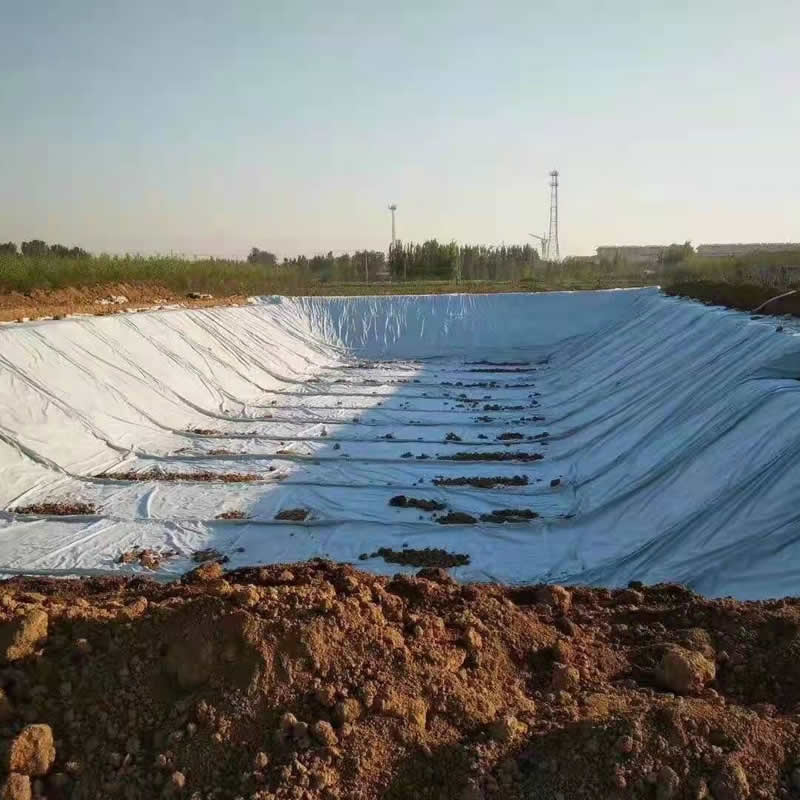

It is widely used in water conservancy dam, traffic tunnel, road construction, airport, drainage, housing, environmental protection and many other fields, in the project, mainly plays a turning over, protection, reinforcement and other functions.
Specification
Product type
- One geomembrane(0.2-1.5mm) + one geotextile(100-1000g/m2)
- Two geotextile(80-600g/m2) + one geomembrane(0.2-1.5mm)
- One geotextile(100-1000g/m2) + multiple geomembrane
- Multiple geotextile(100-1000g/m2) + multiple geomembrane(0.1-0.8mm)
Item |
Unit |
Value |
Thickness of gemembrane |
mm |
0.2 |
0.3 |
0.4 |
0.5 |
0.6 |
0.7 |
0.8 |
1 |
Unit weight |
g/m2 |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
1100 |
Nominal frature strength |
KN/m |
5 |
7.5 |
10 |
12 |
14 |
16 |
18 |
20 |
Elongation rate |
% |
30-100 |
CBR |
KN |
1.1 |
1.5 |
1.9 |
2.2 |
2.5 |
2.8 |
3 |
3.2 |
Tear strength |
KN |
0.15 |
0.25 |
0.32 |
0.4 |
0.48 |
0.56 |
0.62 |
0.7 |
Peel strength |
N/cm |
6 |
Vertical permeability |
cm/s |
|
Width tollerance |
|
-1 |
Hydrostatic pressure (Geotextile + geomembrane) |
Mpa |
0.4 |
0.5 |
0.6 |
0.8 |
1 |
1.2 |
1.4 |
1.6 |
Hydrostatic pressure (Geotextile + geomembrane + geotextile) |
Mpa |
0.5 |
0.6 |
0.8 |
1 |
1.2 |
1.4 |
1.6 |
1.8 |
Width and length |
M |
width 1-6M, length 5-100M |
